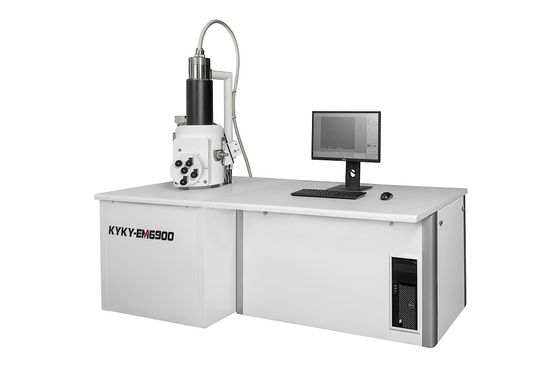

Environmental Scanning Electron Microscope / Sem Electron Microscope EM6900 Std

Environmental Scanning Electron Microscope / Sem Electron Microscope EM6900 Std
Environmental Scanning Electron Microscope / Sem Electron Microscope EM6900 Std

Large Image :  Environmental Scanning Electron Microscope / Sem Electron Microscope EM6900 Std

Product Details:
Place of Origin: China
Brand Name: KYKY
Certification: CE
Model Number: EM6900 Std
Payment & Shipping Terms:
Minimum Order Quantity: 1
Payment Terms: T/T, L/C
Detailed Product Description
Resolution: 3nm@30KV(SE) Magnification: Negative Magnification:6X~300000X Screen Magnification:12X~600000X
Specimen Stage: Five Axes Stage Electron Gun: Tungsten Heated Cathode-Pre Centered Tungsten Filament Cartridge
High Light:

sem electron microscope

,

sem machine

SEM , EM6900 Std , tungsten filament , SE+BSE , Resolution 3nm@30KV(SE)

As KYKY over 60 years SEM manufacture experience, the whole EM series supports old system refurbished and customized system as SEM+, such as Electron Beam Lithography remodel, LaB6 upgrade,integrated with STM,AFM,Heating Stage;Cryo Stage;Tensile Stage;Micro-nano manipulator etc. System also has multiple interface at chamber for attaching most of the analysis detector in the market



Standard EM6900 with maximum resolution you could get from tungsten filament SEM and also has the most convenient detector bundling SE+BSE, comparing with EM6200 it has upgraded sample stage,upgraded objective also the vacuum pathways optimization which is friendly to the customer who’s willing to do the extension analysis based on the tungsten filament SEM.



Muti-language operation system,integrated control panel, customer could control the whole unit simply with mouse and keyboard,comprehensive after-sales service plan with lifelong technical support.





Advanteges:

◆ High resolution

◆ Upgradeable LaB6,huge sample stage etc

◆ Multiple modification schemes

◆ Full set of automated software

◆ Low maintainance cost



Specifications:

Item EM6900 Std Tungsten Filament SEM
Resolution 3nm@30KV(SE) 6nm@30KV(BSE)
Magnification Negative Magnification:6X~300000X Screen Magnification:12X~600000X
Electron Gun Tungsten Heated Cathode-Pre Centered Tungsten Filament Cartridge
Accelerating Voltage 0 ~ 30KV
Lens System Three-level electromagnetic lens(Tapered lens)
Objective Aperture Molybdenum aperture adjustable outside vacuum system
Specimen Stage Five axes stage
Travel X(Auto) 0 ~ 80mm
Range Y(Auto) 0 ~ 60mm
  Z(Manual) 0 ~ 50mm
  R(Manual) 360°
  T(Manual) -5° ~ 90°
Max Specimen Diameter 175mm
Detector High vacuum secondary electron detector
Semiconductor four segmentation back scattering detector
IR CCD

Modification Stage Upgrade;EBL; STM; AFM; Heating Stage; Cryo Stage; Tensile Stage ; Micro-nano manipulator; SEM+Coating Machine;SEM+Laser
Accessories LaB6,X-Ray Detector(EDS),EBSD,CL,WDS,Coating Machine
Vacuum System Turbo Molecular Pumps;Rotation Pump
