Molecular High Vacuum Pump Station Air Cooling Easy Operation DN40 ISO-KF
Pump station FJ-620 Air Cooling with RVP-6 and ZDF-11A2 FJ-620 standard Turbo Molecular Pump Unit is an cleaning equipment to obtain high vacuum. Such equipment is a vacuum obtaining system adopting the principle of vacuum, and consists of mechanical pump and molecular pump. It is featured by quick ...
Easy Operation Vacuum Pump Station
,DN40 Vacuum Pump Station
,Air Cooling Vacuum Pump Station
Pump station FJ-620 Air Cooling with RVP-6 and ZDF-11A2

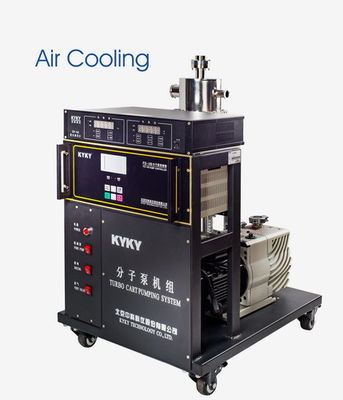

FJ-620 standard Turbo Molecular Pump Unit is an cleaning equipment to obtain high vacuum.
Such equipment is a vacuum obtaining system adopting the principle of vacuum, and consists of mechanical pump and molecular pump. It is featured by quick starting, high vacuum, few oil pollution, easy operation and etc and widely used in the fields of surface analysis, accelerator technology ,plasma technology, electric vacuum device manufacturing and other vacuum areas. The equipment is specifically composed of non-standard frame, mechanical pump and pipelines , electrical control systems, water cooling protection control and etc
Configurations:
| Name | Number |
| F-160/620 molecular pump and power supply | 1 |
| RVP-6 mechanical pump | 1 |
| Frame | 1 |
| Control power supply | 1 |
| ZDF-11A2 combination vacuum gauge | 1 |
| Other attachments |
Main Parameters:
Leaking rate of vacuum system: ≤ 1×10-9Pa·m3/S
Power supply voltage: 380V±10/50Hz
Cooling mode: air cooling
Ambient temperature for equipment utilization: 5-40℃
Ambient humidity for equipment utilization: ≤ 80%
Specifications:
| Unit | FJ-620F | |
| Flange(In) | DN160 CF | |
| DN160 ISO-K | ||
| Flange(Out) | ISO-KF | DN40 |
| Pumping Speed | l/s | N2:600 |
| He:380 | ||
| H2:240 | ||
| Ar:580 | ||
| Compression Ratio | N2:109 | |
| He:105 | ||
| H2:104 | ||
| Ar:109 | ||
| Ultimate Pressure | Pa | CF:6×10-8 |
| ISO-K:6×10-7 | ||
| recommended forevacuum pressure | Pa | 100 |
| forevacuum pump | RVP-6( default ) | |
| Cooling Type,Standard | Air | |
| Cooling Water Consumpyion | L/min | >1 |
| Cooling Water Temperature | ℃ | ≤25 |
| Input voltage/ frequency | V/Hz | 380±20/50 |
| Environment temperature (℃) | Water cooling | 5℃-40℃ |
| Air cooling | 5℃-32℃ | |
| mounting position | Vertical | |
| Controller Model | FD-ⅡB/TCDP-Ⅱ | |
| L*W*H | mm | 550×690×956(LF) |
| 550×690×970(CF) | ||
| Weight | kg | 117 |
