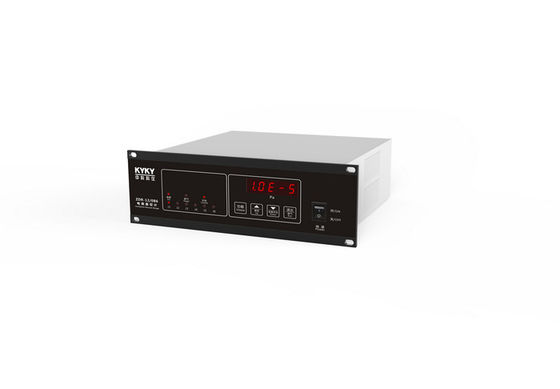

Ultra High Accuracy Rs485 Vacuum Ionization Gauge For Pressure Measurement
Ionization Vacuum Gauge , ZDR-12/06B , 1E-1 to 1E-8 Pa , Analog signal,0-5V , Rs485 Vacuum gauges with newly designed hardware and software featured good reliability, long service time and strong anti-interference, available for wide power range and variety of process requirements. Model ZDR-12/06B ...
Rs485 Vacuum Ionization Gauge
,Ultra High Accuracy Vacuum Ionization Gauge
,Pressure Measurement Vacuum Ionization Gauge
Ionization Vacuum Gauge , ZDR-12/06B , 1E-1 to 1E-8 Pa , Analog signal,0-5V , Rs485
Vacuum gauges with newly designed hardware and software featured good reliability, long service time and strong anti-interference, available for wide power range and variety of process requirements.
Model ZDR-12/06B vacuum gauge can achieve continuous measurement and control for 1*E-1～1*E-8Pa, and have analog signal output( 0-5V). Interface RS485. This ZDR-12/06B, has 1 measure loop and 2 control loops, the control accuracy can reach ±1%.
ZDR-12/06B is panel amount type with standard amounting dimensions.
Advantages:
1. convenient and flexible control
2. Long up-time, stability, reliability
3. Strong anti-jam capability ( preferred for R&D and industrial production)
Specifications:
| Resistance Vacuum Gauge | |
| Measured loop | 1 |
| Type of Gauge | ZJ-12 Ionization gauge |
| Measured range | 1.0×10-1Pa～1.0×10-8 Pa |
| Controlled range | 1.0×10-1Pa～1.0×10-8 Pa |
| Controlled loop | 2 |
| Control mode | On or off relay control, Control point load: AC220V/3A DC28V/10A (non-inductive load), Jog or regional control/with power off memory |
| Accuracy: | ±1％ |
| Analog output | (0～5)V |
| Interface | RS-48 |
| Sampling interval | 1s |
| Power consumption | 45W |
| Display | Five-digits LED display, Scientific notation adopted, e.g.: 1.2E-1 refers to 1.2×10-1Pa |
| Operation temperature | 0℃～45℃ |
| Humidity | ≦85％ |
| Power supply | AC 220V ±10 , 50Hz |
| Install Dimensions(W*H*D) | 240*88*330mm |
| Weight | 4 Kg |
