Ultrahigh Electronic Ce Precision Ionization Vacuum Gauge
Compound Vacuum Gauge , ZDF-11B5 , 10E5 to 10E-5 Pa, Rs-485(Modbus-RTU) Model ZDF-11A2 compound vacuum gauge composed of low and high vacuum measuring units can achieve the continuous measurement and control for 1×10E5～1×10E-5Pa with accuracy ±1%, 4 loops and with Rs485(Modbus-RTU) interface. ...
Electronic Precision Ionization Vacuum Gauge
,Ce Precision Ionization Vacuum Gauge
,Ultrahigh Precision Ionization Vacuum Gauge

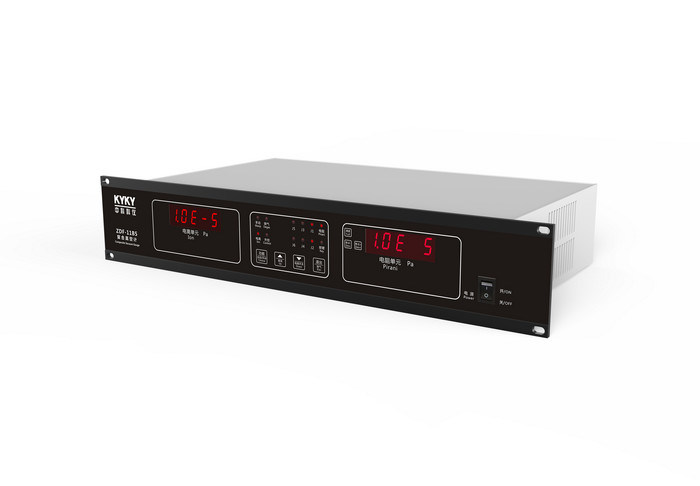

Compound Vacuum Gauge , ZDF-11B5 , 10E5 to 10E-5 Pa, Rs-485(Modbus-RTU)
Model ZDF-11A2 compound vacuum gauge composed of low and high vacuum measuring units can achieve the
continuous measurement and control for 1×10E5～1×10E-5Pa with accuracy ±1%, 4 loops and with Rs485(Modbus-RTU) interface.
Advantages:
The ZDF-11B5 can be set in manual or automatic mode according to the actual operation requirements.
This type of vacuum gauge, with advantages of convenient and flexible control, long up-time, stability, reliability and strong anti-jam capability, In the R&D and industrial production field, this type of vacuum gauge has a good preference.
Specifications:
| Compound vacuum gauge | ZDF-11B5 |
| Measured loop | 2,(Resistance gauge and ionization gauge each) |
| Type of gauge | ZJ-52T resistance gauge ZJ-27ionization gauge |
| Controlled loops | 4 |
| Measured range | 1.0×105Pa～ 1.0×10-5Pa |
| Controlled range | 1.0×105Pa～ 1.0×10-5Pa |
| Accuracy | ±1％ |
| Control mode: | On or off relay control, Control point load: AC220V/3A DC28V/10A (non-inductive load), Jog or regional control/with power off memory |
| Sampling interval | 1S |
| Display | Five-digits LED display, e.g.: 1.2E-1 refers to 1.2×10-1Pa |
| Power consumption:50W | |
| Interface | 0-5V , Rs485 ( Modbus-RTU) |
| External control of Ionization gauge | Passive Swith |
| Power supply | AC 220V±10% 50Hzm 45W |
| Operation temperature | 0℃～45℃ |
| Humidity | ≦85％ |
| Dimension( W*H*D) | 480×88×280 mm |
| Weight | 4Kg |
.
