Mechanical Rotary Vane Vacuum Pump Oil High Ultimate Vacuum For Scientific Research

large.img.alt
small.img.alt

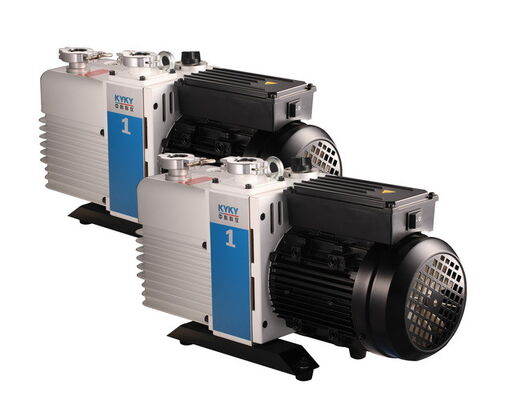

Large Image :  Mechanical Rotary Vane Vacuum Pump Oil High Ultimate Vacuum For Scientific Research

Product Details:
Place of Origin: China
Brand Name: KYKY
Certification: CE
Model Number: RVD-1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden box , available for exporting shipment
Delivery Time: 2 weeks
Payment Terms: T/T
Detailed Product Description
Pumping Speed: 1.1L ( 50Hz) Inlet Flange: 16/25KF
Oil Consumption: 0.6-1L Ultimate Pressure: 5E-2Pa
High Light:

oil lubricated rotary vane vacuum pumps

,

two stage rotary vane vacuum pump

Rotary Vane Pump , RVD-1 , Pumping speed(L/s) 1.1L(50Hz) , 1.2L(60Hz) , oil

The RVP series rotary vane pump is the one of fundamental vacuum acquiring equipment in vacuum applications, which is widely used in scientific research and teaching the require high or low vacuum environment, as well as in operation fields requiring an vacuum environment, such as auxiliaries to vacuum application equipment auxiliaries to production lines in electronic and semiconductor industries , color kinescope exhaust production line, vacuum freeze drying, production of analytic instruments and electric light sources.



Not only can the pump be used independently, but it can serve as a backing pump in such high and ultra high vacuum systems as molecular pump, diffution pump and rooster pump, used in a matching manner.



Applications:

The pump can not be used for dust removal and for any gases which are corrosive , explosive or have chemical reaction with metals or vacuum pump oils, can not be used as a compression pump or transmission pump, nor suitable for continuous working near atmospheric pressure.



Features:

Consisting of an oil return preventing check valve system, a pressure oil circulating system, a convenient gas ballast valve control, etc, this pump is characterized by, among other, high ultimate vacuum, low noise, and no oil leakage and injection, providing excellent services for the users with its advanced performance and reliable quality.



Specifications:

Model RVD-1
Pumping speed(L/s) 50Hz 1.1
60Hz 1.3
Ultimate Partial pressure without gas ballast(Pa) 5×10-2
Ultimate Full pressure without gas ballast(Pa) 5×10-1
Ultimate Full pressure with gas ballast(Pa) 3
Power supply Three/single phase
Power(KW) 0.4/0.37
Out let DN(mm) 16/25KF
Oil consumption ( L) 0.6-1
Rotation speed(rpm) 50Hz 1440
60Hz 1720
Working temperature(℃) 10-40
Noise(dB(A)) ≤56
Protection level(IP) 44
Wight(kg) 19
